Microinverters

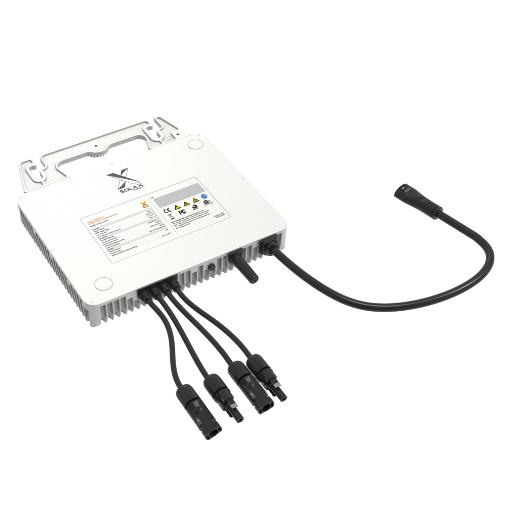

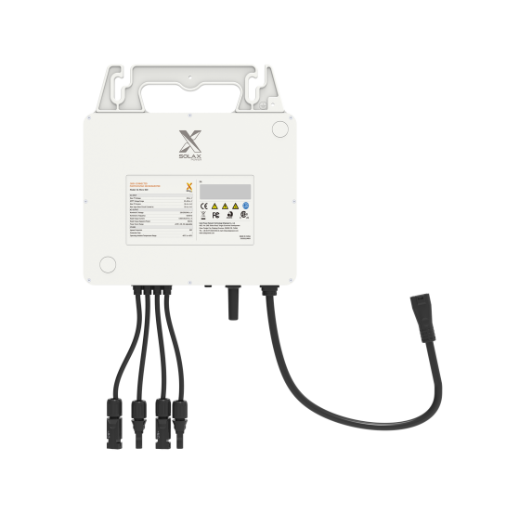

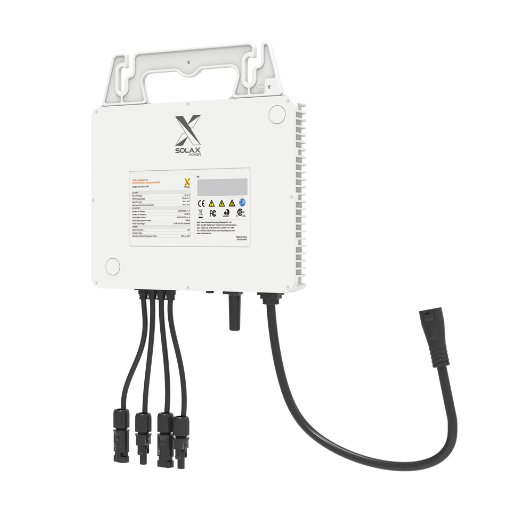

X1-Micro 2 in 1
-
750 W / 800 W / 900 W / 1000 W / 1200 W
The SolaX X1-Micro 2 in 1 microinverter is engineered with precision to deliver maximum power in a compact, lightweight form. With its industrial-grade built-in WiFi module and easy installation, it is ideal fo residential setups seeking a clean, efficient solution.
-
Watch Video
Product Advantage
Delivering up to 1200VA output power with a 20A DC input current, the X1-Micro 2 in 1 sets a high standard in energy conversion efficiency. Featuring two independent MPPT channels, it maximizes solar yield across variable conditions.
Assured Safety
Rapid Shutdown function
Safety protection relay integrated
IP67 ingress protection
High Efficiency
Max. 1200VA output power
Max. 20A DC input current
TWO MPPT channels
Intelligent Design
Reactive power control
Built-in industrial grade WiFi module
Easy to install and maintain
Flexible Adaptability
Easy and flexible expansion of system capacity
Support AC coupling solution
Support 1-phase microinverter integration into 3-phase power grid
Product Parameters
-
X1-Micro 750-
PV INPUT
Commonly used module power per input 240~470+W MPPT voltage range 22 ~ 60 V Number of MPP. trackers/strings per MPPT 2 / 1 -
AC OUTPUT
Rated AC output power 750 VA -
EFFICIENCY
Peak efficiency 96.50% Nominal MPPT efficiency 99.90% -
GENERAL
Ingress protection rating IP67 Dimensions (W /H / D) 260x212x40 mm Weight 4.1 kg Cooling Concept Natural cooling
-
-
X1-Micro 800
-
PV INPUT
Commonly used module power per input 320~540+W MPPT voltage range 22 ~ 60 V Number of MPP. trackers/strings per MPPT 2 / 1 -
AC OUTPUT
Rated AC output power 800 VA -
EFFICIENCY
Peak efficiency 96.50% Nominal MPPT efficiency 99.90% -
GENERAL
Ingress protection rating IP67 Dimensions (W /H / D) 260x212x40 mm Weight 4.1 kg Cooling Concept Natural cooling
-
-
X1-Micro 900
-
PV INPUT
Commonly used module power per input 360~600+W MPPT voltage range 22 ~ 60 V Number of MPP. trackers/strings per MPPT 2 / 1 -
AC OUTPUT
Rated AC output power 900 VA -
EFFICIENCY
Peak efficiency 96.50% Nominal MPPT efficiency 99.90% -
GENERAL
Ingress protection rating IP67 Dimensions (W /H / D) 260x212x40 mm Weight 4.1 kg Cooling Concept Natural cooling
-
-
X1-Micro 1000
-
PV INPUT
Commonly used module power per input 360~600+W MPPT voltage range 22 ~ 60 V Number of MPP. trackers/strings per MPPT 2 / 1 -
AC OUTPUT
Rated AC output power 1000 VA -
EFFICIENCY
Peak efficiency 96.50% Nominal MPPT efficiency 99.90% -
GENERAL
Ingress protection rating IP67 Dimensions (W /H / D) 260x212x40 mm Weight 4.1 kg Cooling Concept Natural cooling
-
-
X1-Micro 1200
-
PV INPUT
Commonly used module power per input 400~670+W MPPT voltage range 22 ~ 60 V Number of MPP. trackers/strings per MPPT 2 / 1 -
AC OUTPUT
Rated AC output power 1200 VA -
EFFICIENCY
Peak efficiency 96.50% Nominal MPPT efficiency 99.90% -
GENERAL
Ingress protection rating IP67 Dimensions (W /H / D) 260x212x40 mm Weight 4.1 kg Cooling Concept Natural cooling
-
Data Download
-
Datasheet
-
User Manual
-
Quick Installation Guide
-
File nameLanguageFormatSizeLast updateddownload
