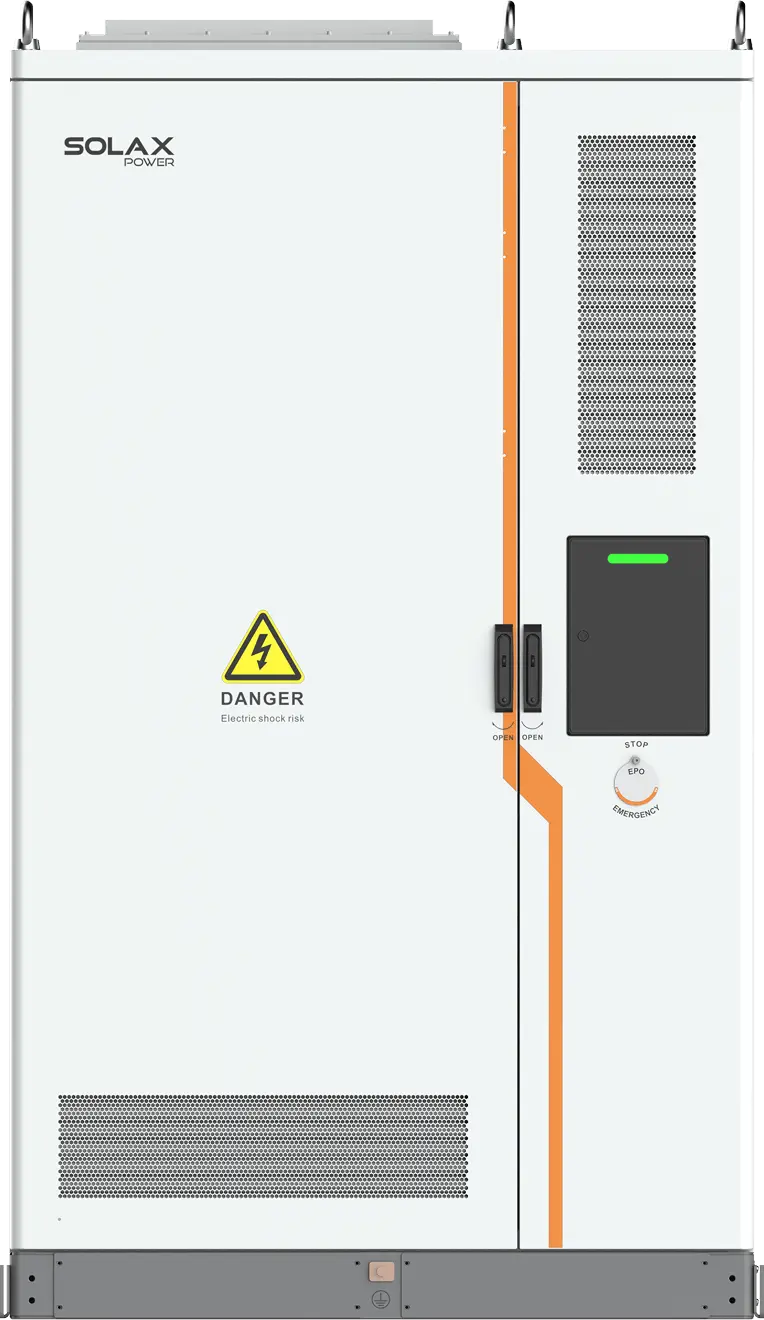

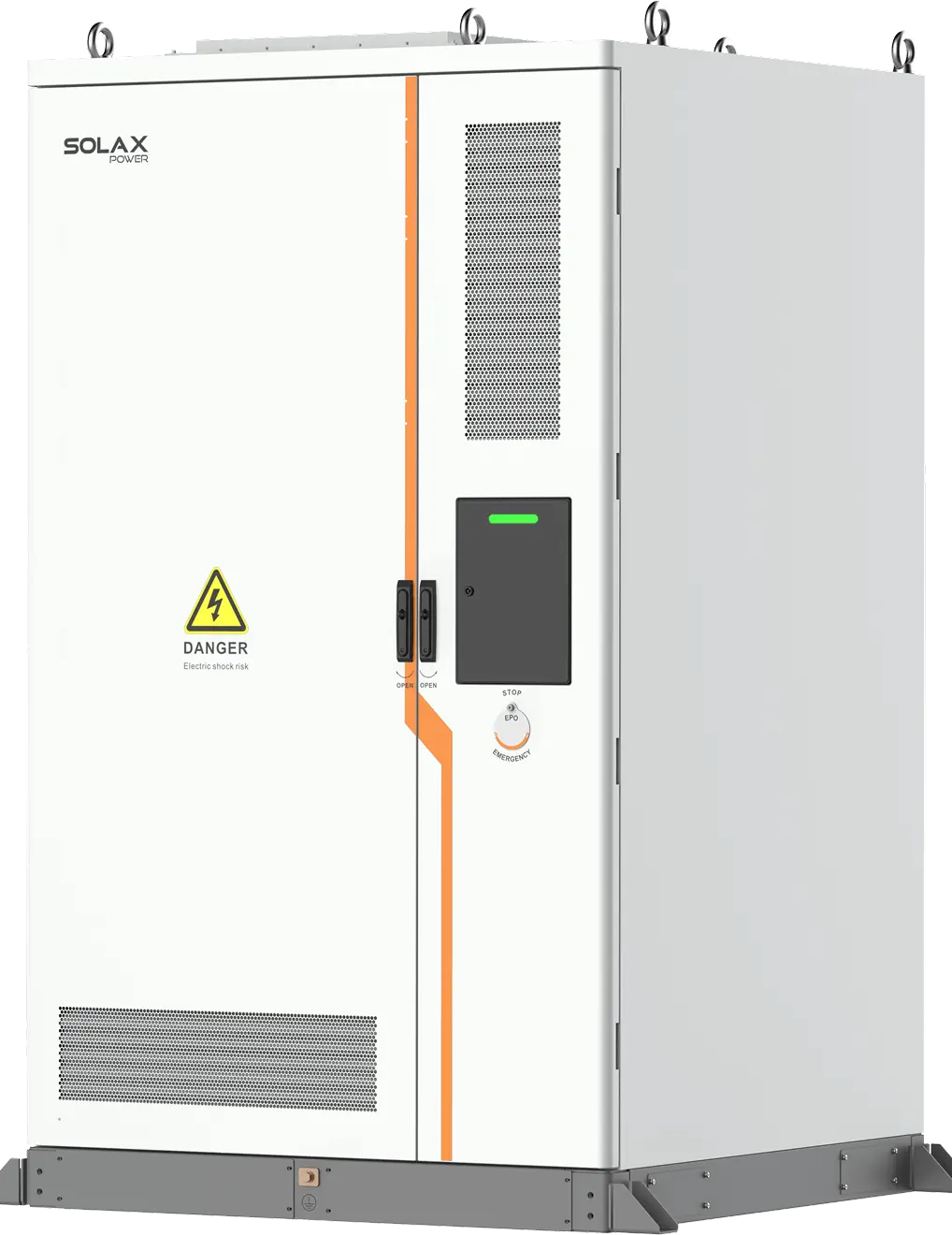

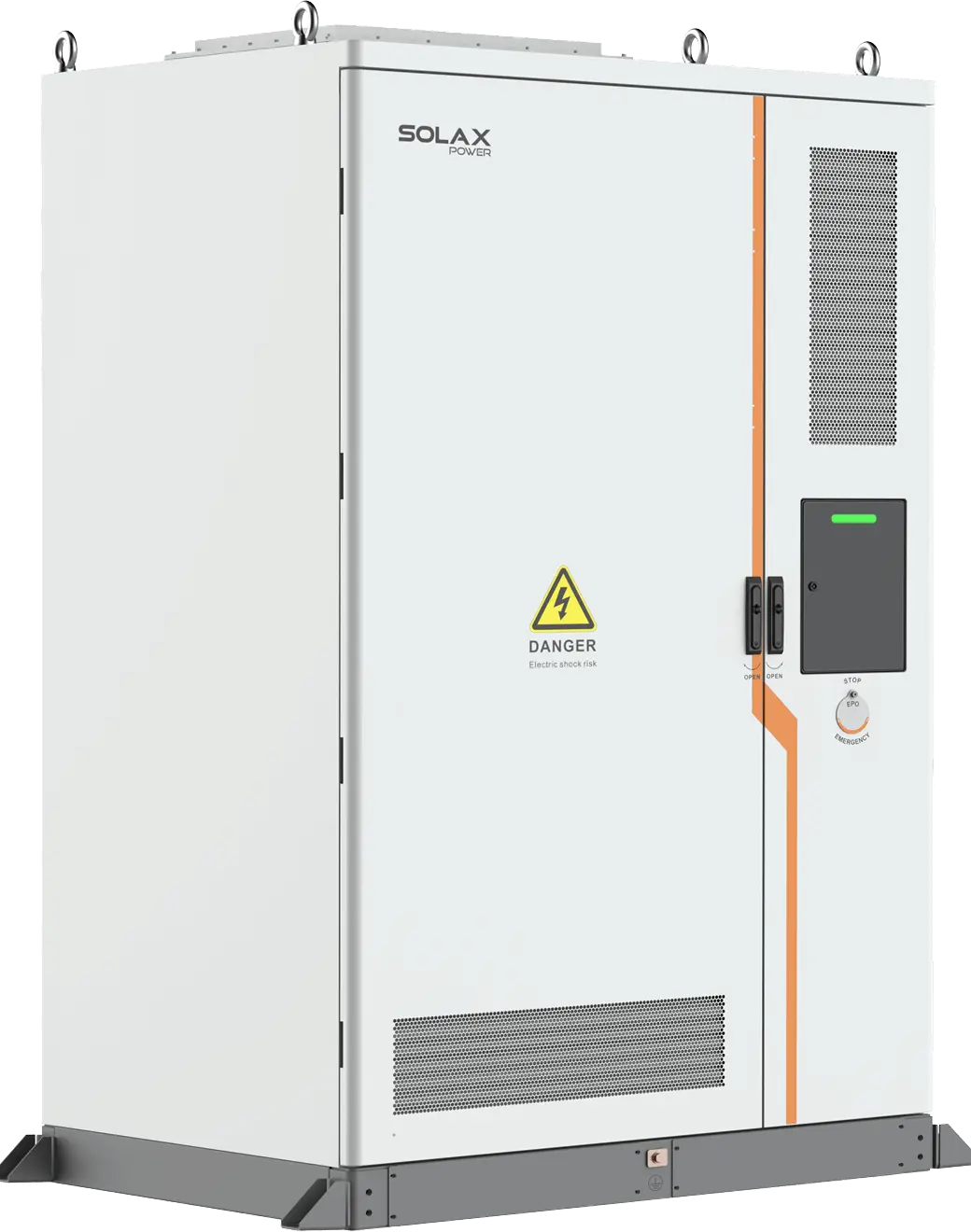

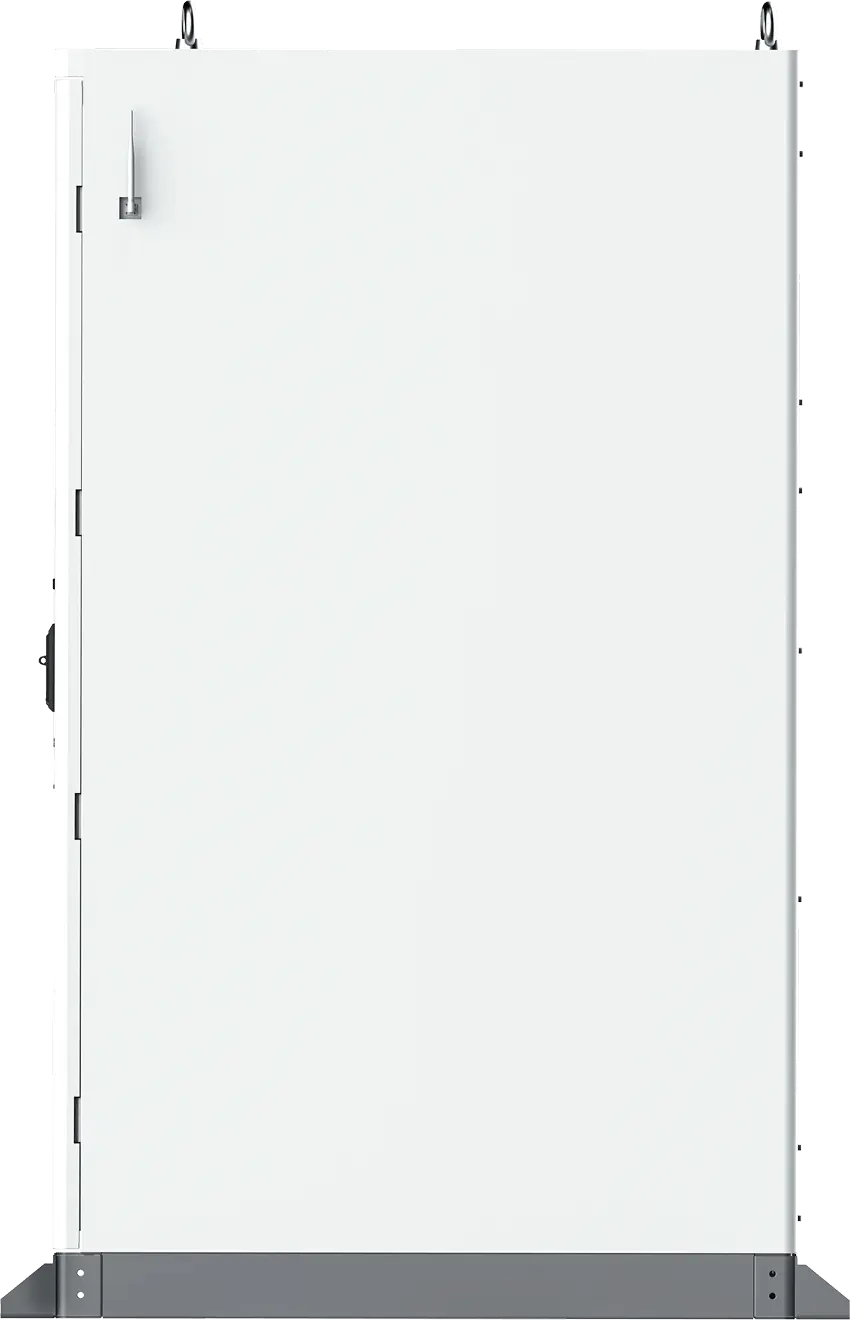

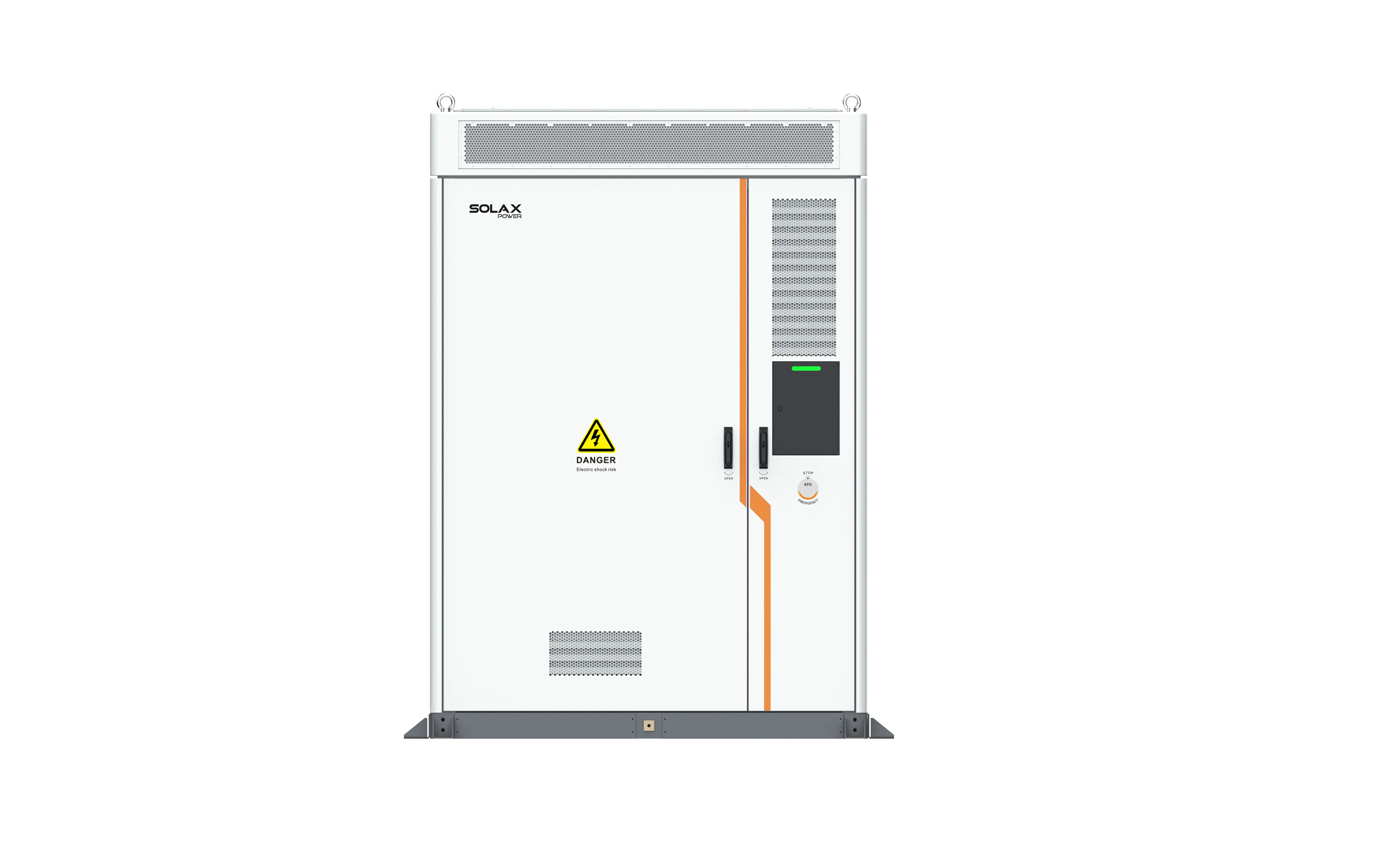

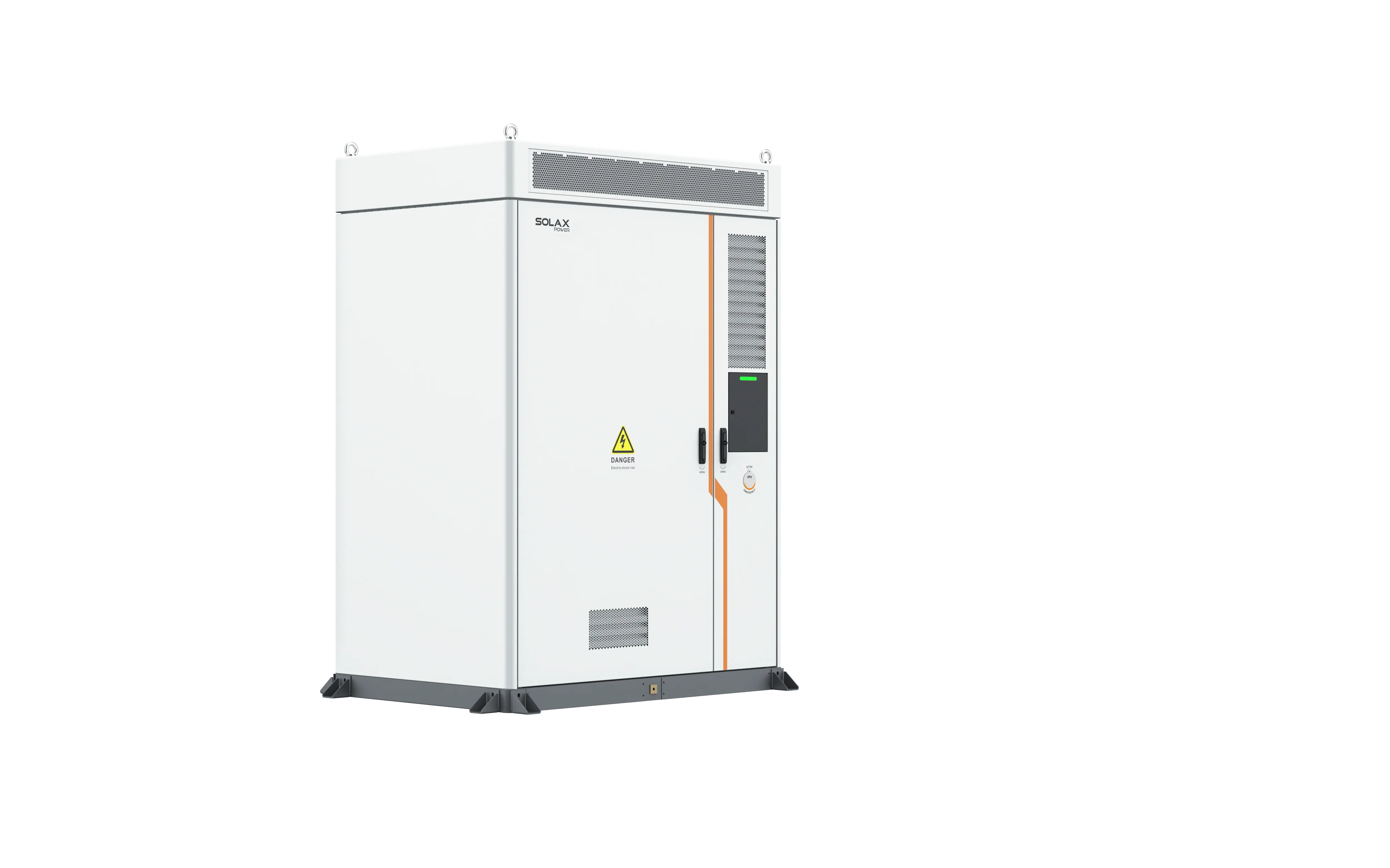

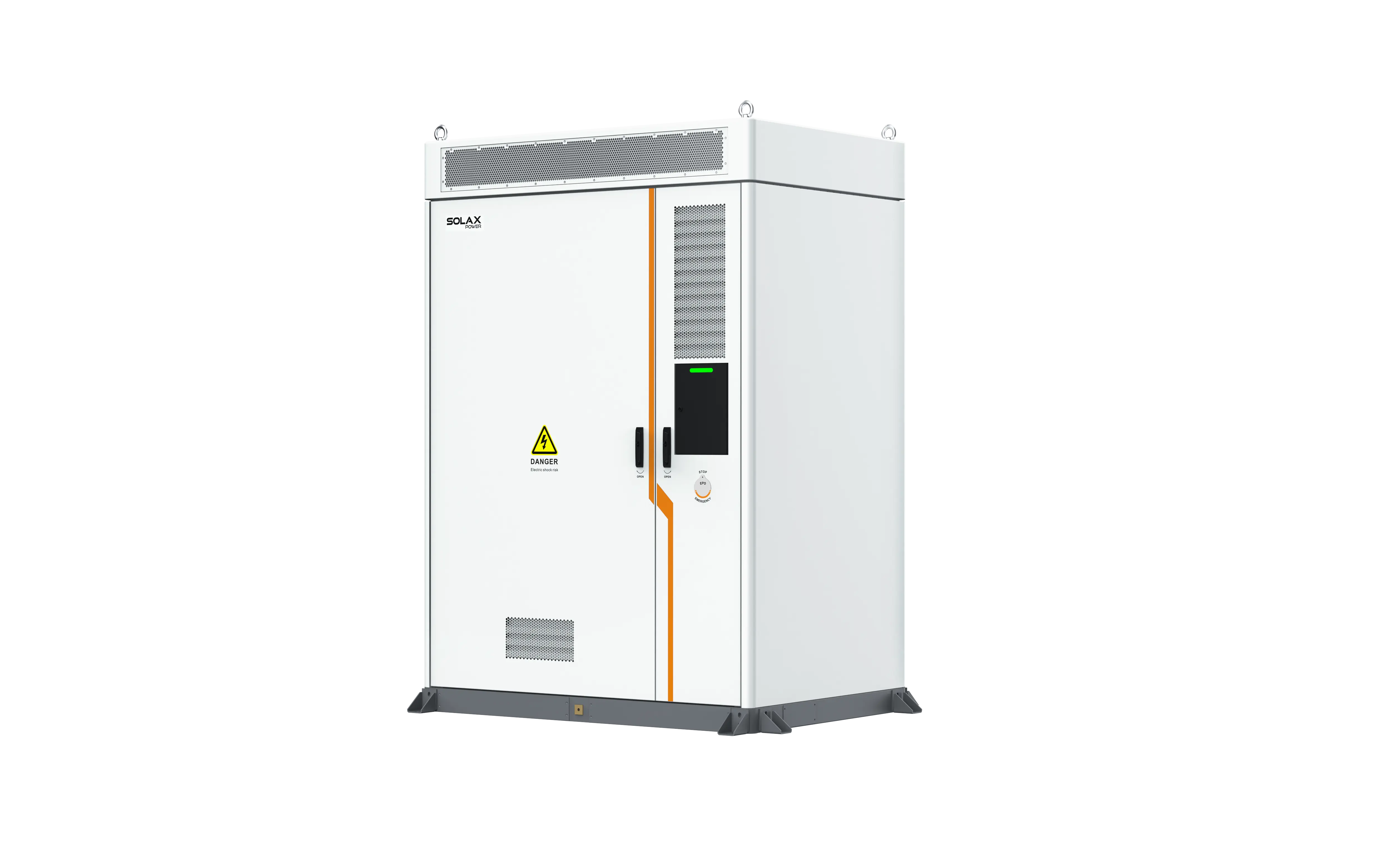

Energy Storage System

ESS-TRENE

Air Cooling

100kW/ 215kWh | Air Cooling

Smart Management


  • Advanced energy management system

  • VPP ready with SolaX Cloud (2030.5, OpenADR)

  • Support micro-grids and diverse scenarios

  • Smart Schedule, Smart Scene and 7×24h TOU

  • Wireless meter compatibility




High Performance


  • High power density, compact design

  • Scalable up to megawatt-hours

  • Optimised space utilisation


Assured Reliability


  • Four-level fire safety protection

  • IP66 for inverter, lP55 for cabinet

  • LiFePO4 battery cell & high-performance processors

  • Type ll SPD on AC side

  • Advanced fault detection and response

  • Support three-phase unbalance output




Flexible Adaptability


  • Grid-connected and off-grid support

  • Self-developed BMS & EMS via SolaX Cloud

  • One year of historical data storage


Why ESS-TRENE

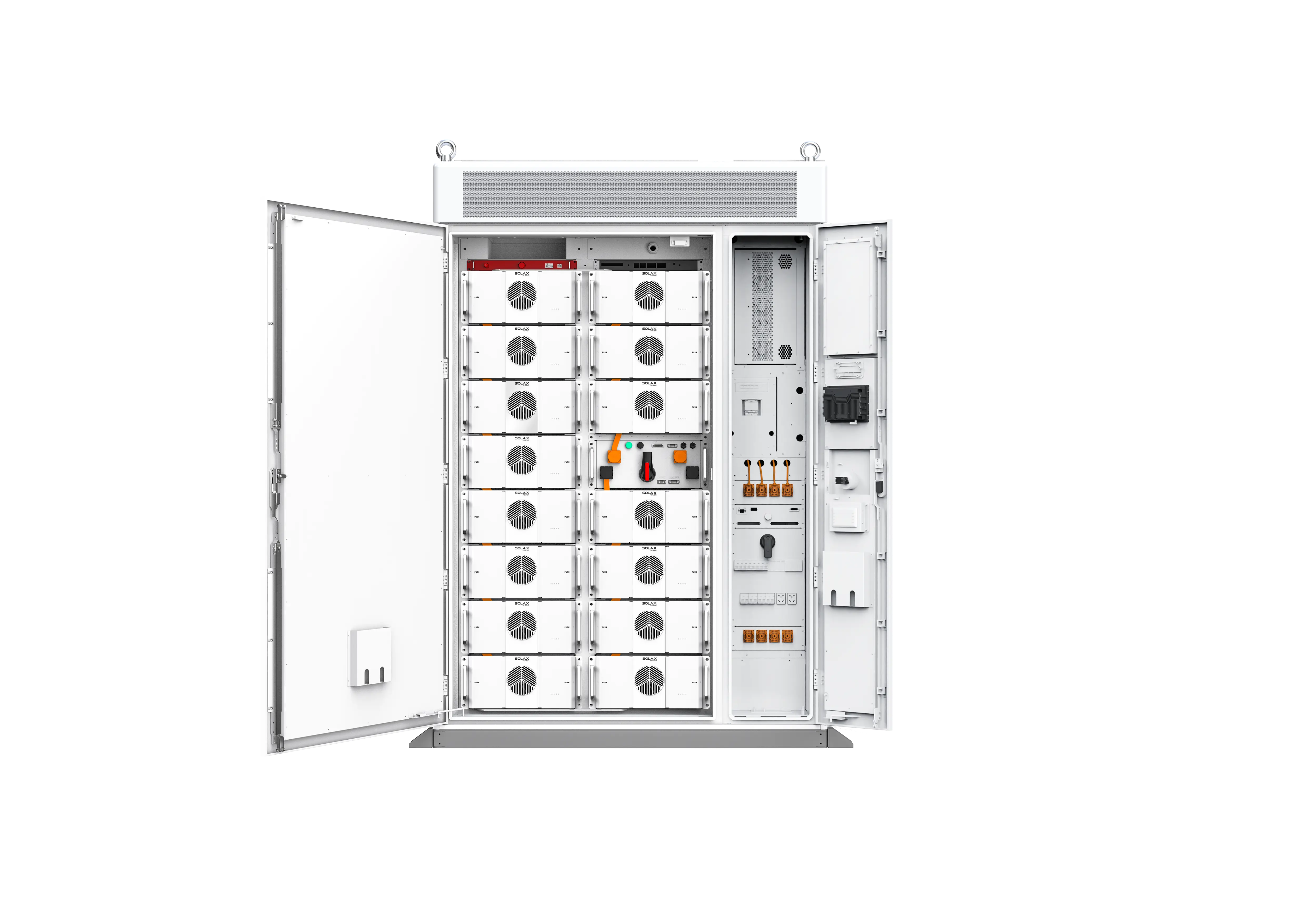

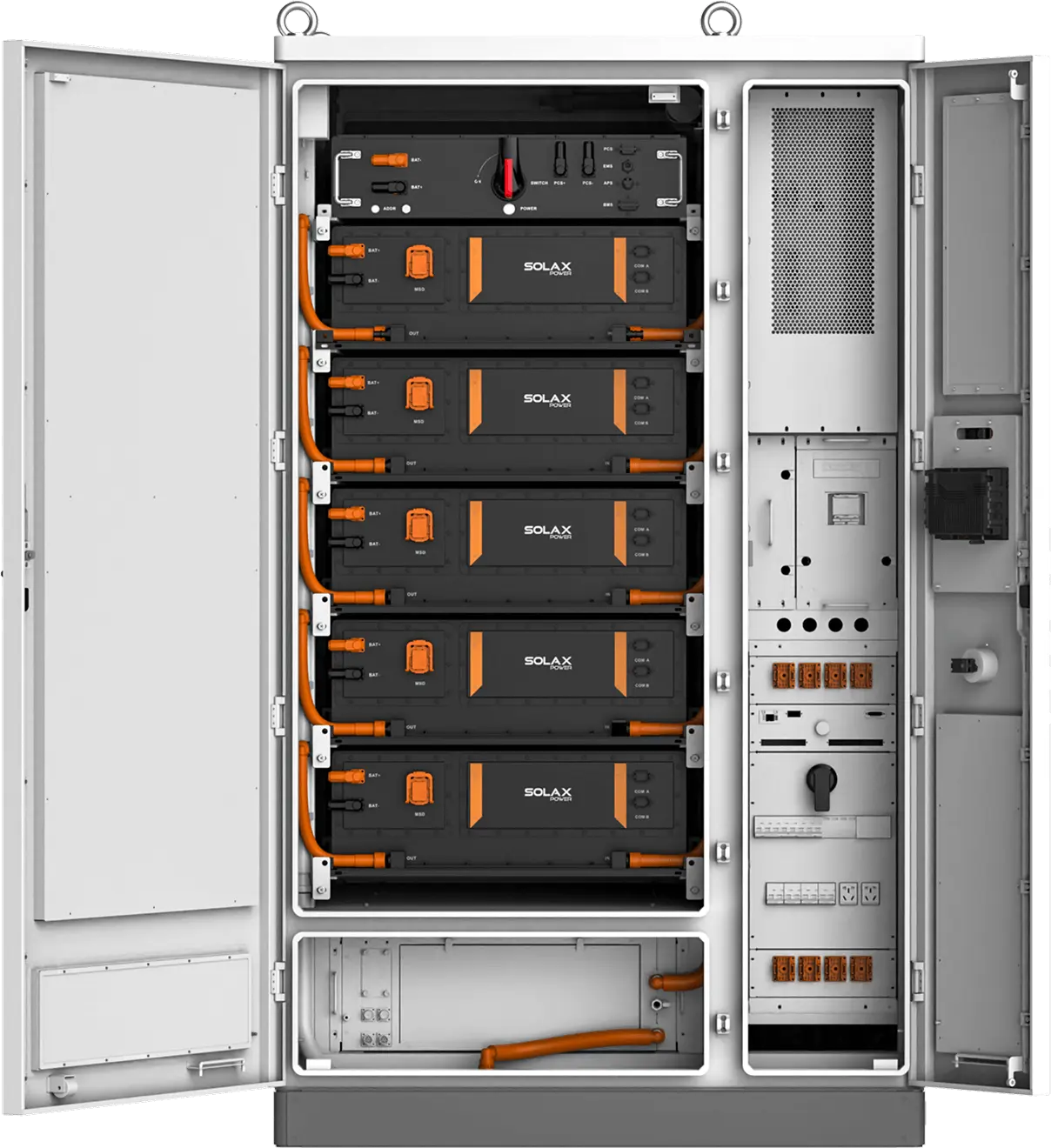

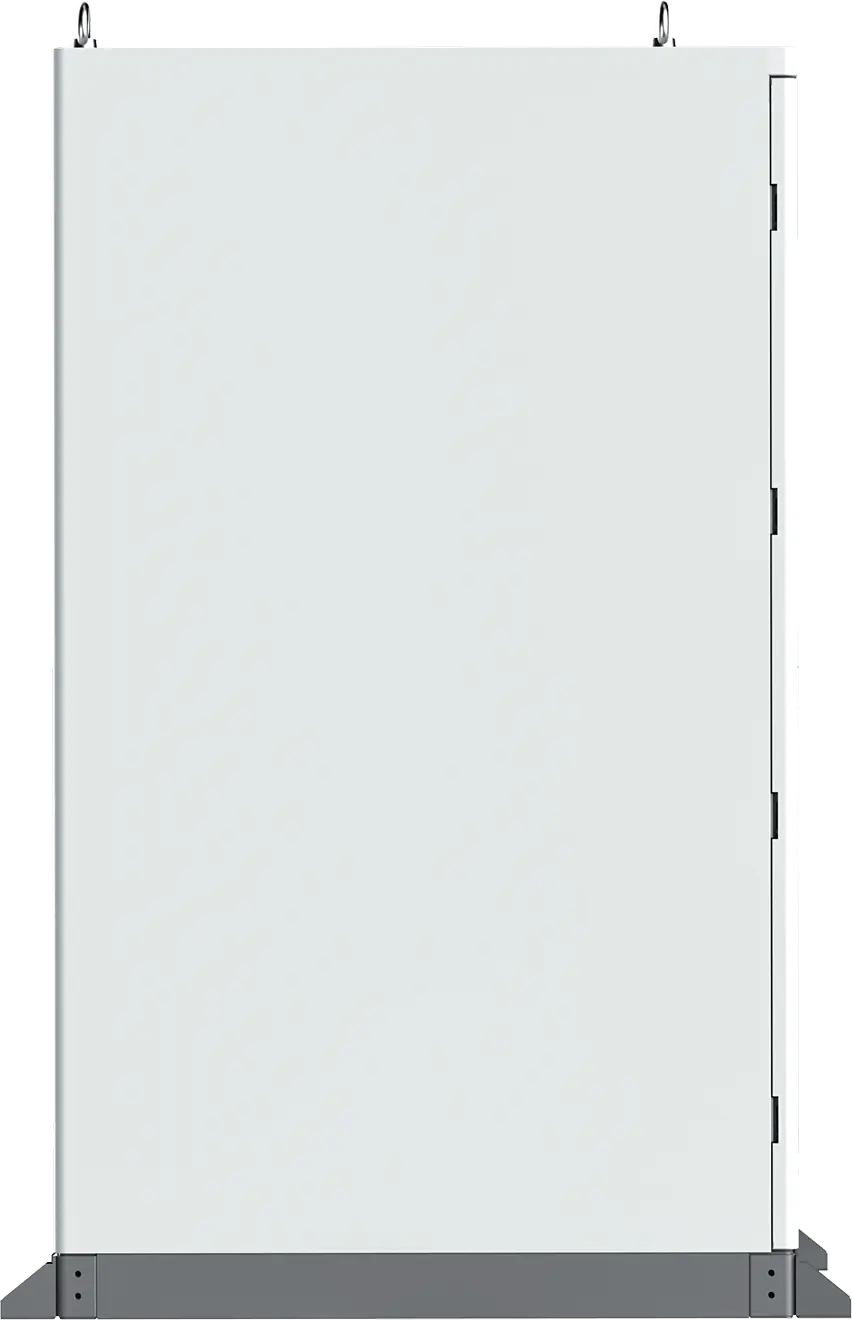

TRENE series C&I energy storage cabinet is a highly integrated, all-in-one solution with versatile application scenarios. TRENE air-cooled series provides effi­cient, safe, and stable smart energy storage solutions.


Firstly, the cabinet adopts high-density, high-safety, and high-performance LFP cells. With a capacity of 215kWh per cabinet, it can reliably perform charging and discharging operations for single or multiple cabinets, with a lifespan of over 10 years. The large-capacity 280Ah battery cells also reduce the overall system investment cost.


Secondly, the cabinet is equipped with a self-developed Energy Management System (EMS) that can monitor the working status and abnormal alerts of each battery cell, PCS, and fire protection system in real-time. The local data storage capability allows for data analysis and verification for up to 1 year. The advanced EMS system also has leading advantages in intelligent control of different smart operation strategies, autonomous scheduling based on local electricity prices, and comprehensive management of photovoltaic, energy storage systems, EV charging and generators at power plant level. These features improve the overall system e­fficiency and shorten the investment return period.


Additionally, the cabinet integrates multiple safety protection measures. It has built-in protection functions such as overvoltage, overcurrent, and over-temperature, as well as fire-resistant materials and 4-level fire protection system to promptly detect and respond to potential fire risks. This effectively controls the spread of fires and reduces the risk of safety accidents.


The cabinet is suitable for various commercial and industrial scenarios, including peak shaving, demand response, backup mode, photovoltaic and energy storage integration, and stable load consumption curves. It also supports applications such as virtual power plants(VPP) and frequency regulation



TRENE-P100B215I
AttributeTRENE-P100B215
Rated AC power [kW]100
Rated AC current [A]144.4
Max. AC output apparent power   [kVA]110
Nominal grid voltage [V]400 (-20% ~ +15%)
Nominal grid frequency [Hz]50/60
Adjustable power factor range0.99leading ~ 0.99lagging
THDi (Rated power) [%]< 3
Max. efficiency [%]98%
Battery typeLithium
Rated battery capacity [kWh]215
Rated battery voltage [V]768
Battery voltage range [V]636 ~ 876
Discharge depth [%]90
Rated charge/discharge current   [A]140
Dimensions (W×H×D) [mm]1680 × 2420 × 1200
Weight2800
Operating temperature range   [°C]-30 ~ 55
Relative humidity   (Non-condensing) [%]0 ~ 95
Altitude [m]3000
Cooling conceptSmart air cooling
Ingress protectionIP55
Fire protectionAerosol(Optional:Novec1230 ) / Water
TopologyNon-isolated
CertificatesIEC62619, IEC63056:2000, IEC61000, IEC62477-1, UN38.3,   GB/T36276, GB/T34131
